ggrefine

The objective of ggrefine is to provide complete themes and functions for publication-quality ‘ggplot2’ visualisation.

Installation

Install from CRAN, or development version from GitHub.

install.packages("ggrefine")
pak::pak("davidhodge931/ggrefine")

Theme

The themes are built to work with the refine functions in that they have all axis and panel grid elements.

They can also be customised easily.

The theme_ggplot2 function has a smart panel_grid_colour default that is derived from the panel_background_fill.

library(ggplot2)
library(ggrefine)

set_lights()
update_panel_size(heights = unit(5, "cm"), widths = unit(7.5, "cm"))

p <- mpg |>
  ggplot() +
  aes(x = hwy) +
  geom_histogram() +
  scale_y_zero() +
  scale_colour_blend_discrete() +
  refine_axis_grid()

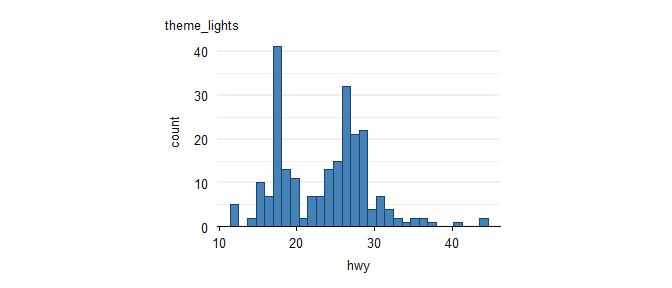

p + labs(title = "theme_lights")
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.

update_greys()

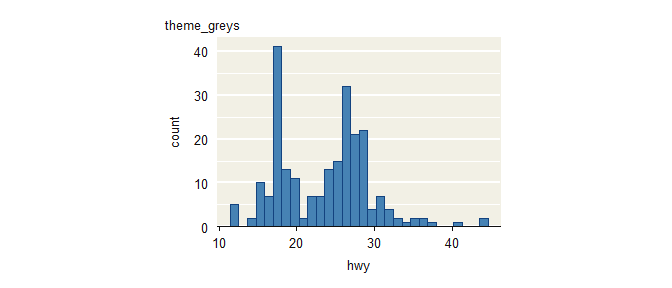

p + labs(title = "theme_greys")
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.

update_darks()

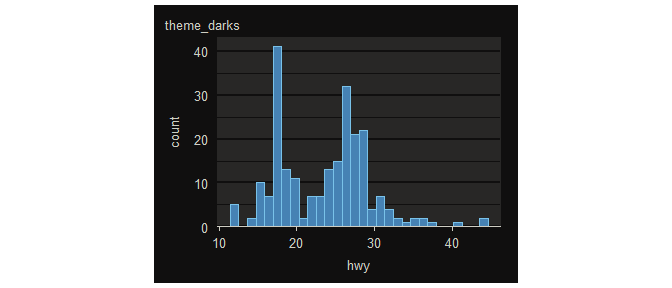

p + labs(title = "theme_darks")
#> `stat_bin()` using `bins = 30`. Pick better value `binwidth`.

update_lights()

Scales and Aesthetics

The package provides dynamic colour and fill aesthetic and scale helpers that evaluate aesthetics late to provide automatic colour or fill properties.

These can be:

• a blend of fill (or colour)
• a contrast of fill (intended for text geoms)
• a contrast of the panel.background fill (intended for text geoms).

Note aes_colour_contrast requires the ggrefine function to be used instead of ggplot2::ggplot to work where no fill aesthetic is mapped. As such, it can be useful to always use ggrefine followed by ggplot2::aes to avoid thinking about this.

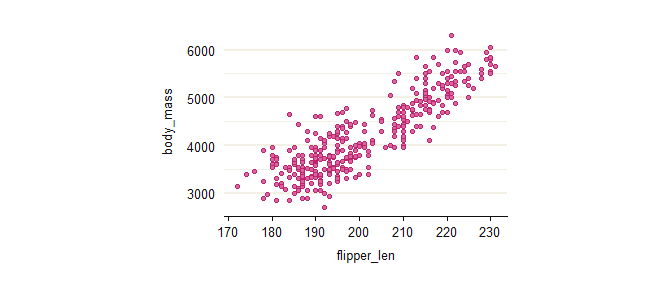

penguins |>
  ggrefine() +
  aes(x = flipper_len, y = body_mass, fill = I(jumble::pink)) +
  geom_point() +
  scale_colour_blend_discrete() +
  refine_axis_grid()
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_point()`).

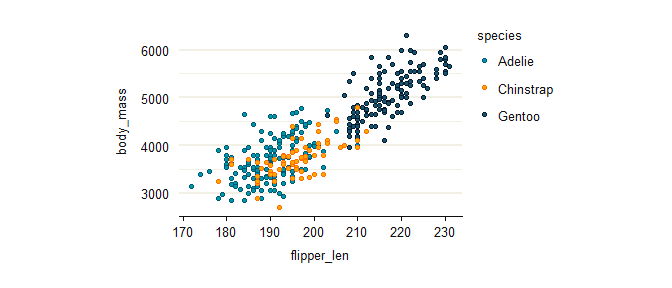

penguins |>
  ggrefine() +
  aes(x = flipper_len, y = body_mass, fill = species) +
  geom_point() +
  scale_colour_blend_discrete() +
  refine_axis_grid()
#> Warning: Removed 2 rows containing missing values or values outside the scale range
#> (`geom_point()`).

p <- mpg |>
  dplyr::count(class) |>
  dplyr::mutate(class = forcats::fct_reorder(class, n)) |>
  ggrefine() +
  aes(x = n, y = class, label = n) +
  geom_col(width = 0.7) +
  scale_x_zero() +
  scale_colour_blend_discrete() +
  refine_axis_grid(discrete = "y")

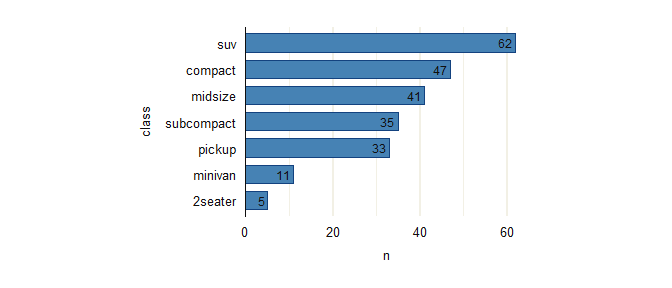

p +
  geom_text(aes_colour_contrast(), hjust = 1.25)

update_palette(fixed = jumble::navy)

p +
  geom_text(aes_colour_contrast(), hjust = 1.25)

update_palette(discrete = jumble::jumble)

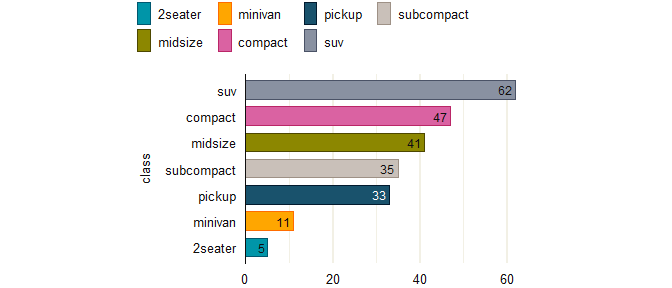

p +
  aes(fill = class) +
  geom_text(aes_colour_contrast(), hjust = 1.25) +
  refine_legend(position = "top")

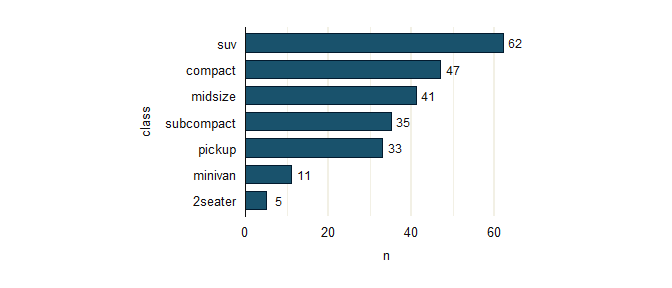

p +
  geom_text(aes(x = n + (max(n) * 0.05), !!!aes_colour_panel()))

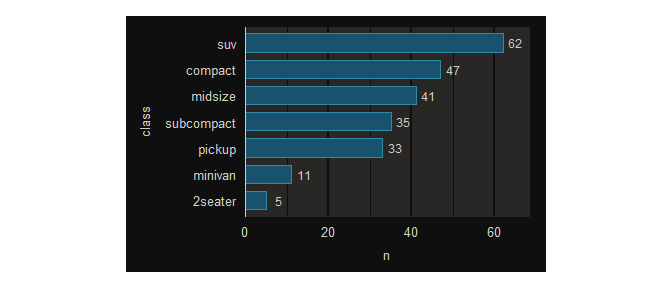

update_darks()

p +
  geom_text(aes(x = n + (max(n) * 0.05), !!!aes_colour_panel()))

Other packages

This package is part of a group of related packages built to extend ggplot2.
