Processing of GNSS Streams from Sports Watches

Tools to read, clean and standardise GNSS (Global Navigation Satellite System) streams recorded by sports watches and similar devices, with a focus on trail and mountain running. The pipeline reads GPX files, applies a naming convention, sanitises coordinates (Kalman, LOESS, Gaussian kernel or Savitzky-Golay smoothing, and red flags for implausible readings), resamples the trajectory to a uniform spatial resolution derived from the Nyquist criterion, and replaces elevation with values from a Digital Elevation Model. Derived measures include speed, slope, elevation gain and kilometre-effort, Tobler hiking function parameters fitted by quantile regression, comparison between streams, detection of passes along a route and map matching to a known reference trail by dynamic programming. Methods follow Sanchez and Villena (2020) , Sanchez et al. (2024) , Sanchez et al. (2025) and Martinez, Sanchez and Diaz (2026) .

metrictrails

metrictrails is an R package to read, clean and standardise GNSS streams recorded by sports watches and similar devices, with a focus on trail and mountain running. It is the successor of GPStream and implements the methods of the Metric Trails research papers (see References).

A stream is any sequence of consecutive readings with lon and lat, and optionally ele, timestamp, time, heart rate, cadence and other variables.

Installation

# install.packages("remotes")
remotes::install_github("raimun2/metrictrails")

The pipeline

A full walkthrough is in the vignette: vignette("metrictrails").

step	function	what it does
1. ingest	`read_stream()`	reads a GPX file with sf (tracks or routes, segments and Garmin extensions)
2. naming convention	`uniform_stream()`	renames columns to `lon, lat, ele, timestamp, time`
3. sanitize	`sanitize_stream()`	smooths `lon/lat` (Kalman by default; LOESS, Gaussian kernel, Savitzky-Golay or the full ICECET 2026 pipeline) and flags implausible readings
4. resample	`resolution_stream()`, `resample_stream()`	resamples to a uniform 2D spatial resolution derived from the Nyquist criterion
5. elevation	`get_dem()`, `resample_dem()`, `ele_correction()`	replaces elevation with values from a Digital Elevation Model

library(metrictrails)

f = system.file("extdata", "gpx_activity.gpx", package = "metrictrails")
dem = system.file("extdata", "test_dem.tif", package = "metrictrails")

raw = read_stream(f) %>% uniform_stream()
raw
#> # A tibble: 2,510 x 9
#>     lon   lat   ele timestamp            time segment atemp    hr   cad
#>   <dbl> <dbl> <dbl> <dttm>              <dbl>   <int> <dbl> <dbl> <dbl>
#> 1 -70.6 -33.4  772  2020-08-10 19:36:38     0       1    27   106    47
#> 2 -70.6 -33.4  771  2020-08-10 19:36:39     1       1    27   108    47
#> 3 -70.6 -33.4  772. 2020-08-10 19:36:42     4       1    27   111    76
#> # i 2,507 more rows

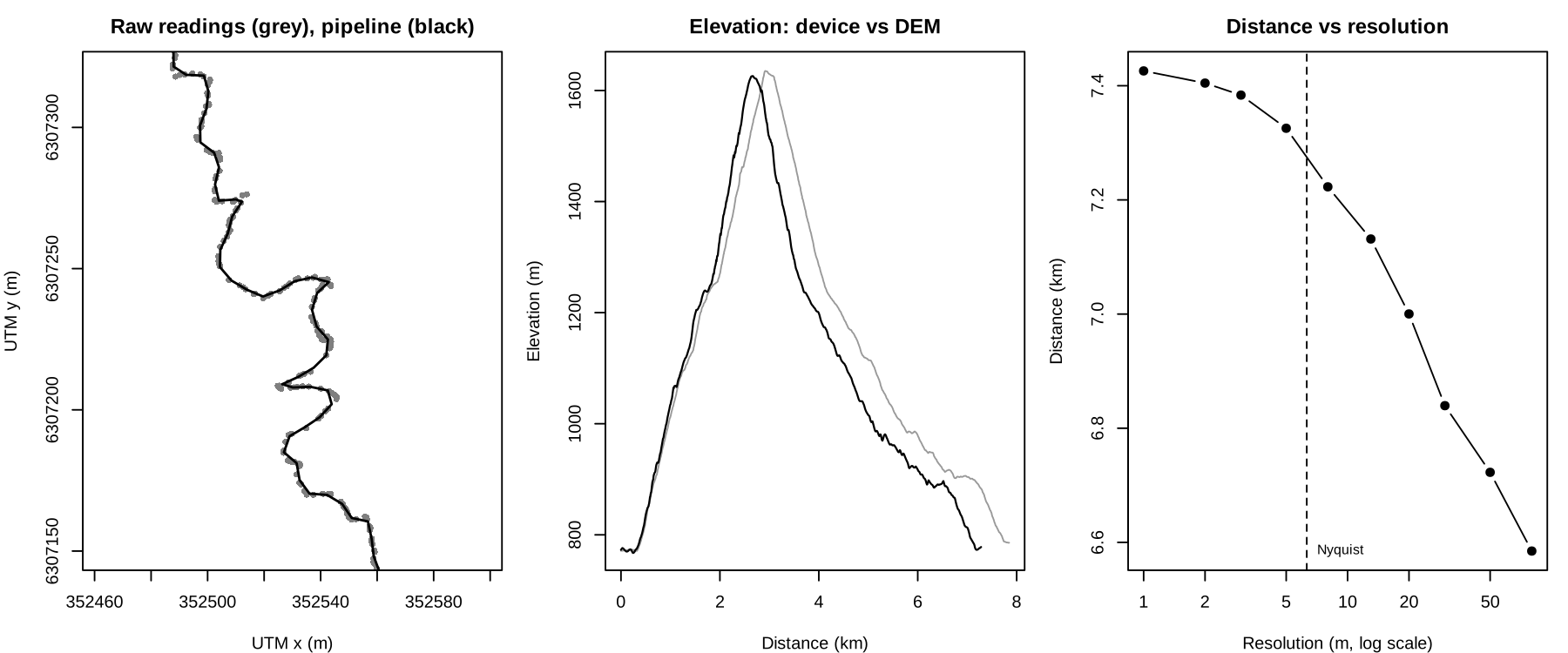

final = raw %>%
  sanitize_stream() %>%       # Kalman smoothing + red flags
  resample_stream() %>%       # Nyquist resolution
  ele_correction(dem = dem)   # DEM elevation (omit `dem` to download one)

Sanitize: smoothing and red flags

Flags are computed on the raw readings. Position flags (time, speed, acceleration, edge jumps) and elevation flags (slope, vertical speed, elevation change while idle) can be kept, dropped or interpolated (action).

clean = sanitize_stream(raw)
attr(clean, "sanitize_report")$counts
#>       flag_time      flag_speed      flag_accel       flag_jump      flag_slope
#>               0               0               0               0              71
#> flag_vert_speed   flag_idle_ele        flag_gap    flag_low_res
#>               3               3               0              10

Resample: the Nyquist resolution

A watch that records at a fixed rate produces a spatial resolution that is a random variable (speed times sampling interval), so distance and elevation gain depend on how fast the athlete moved. resolution_stream() describes the distribution of the 2D distance between moving readings. Its 0.9 quantile is the finest uniform spacing that represents the path without inventing readings, and resample_stream() uses it by default. To compare several streams, resample all of them with one common res.

resolution_stream(clean)
#> # A tibble: 1 x 12
#>       n pct_idle  mean    sd   q05   q25   q50   q75   q95   max     q   res
#>   <int>    <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl> <dbl>
#> 1  2510   0.0797  2.97  3.07 0.512  1.08  2.00  3.49  9.10  22.8   0.9  6.31

Elevation from a DEM

get_dem() downloads AWS Terrain Tiles (zoom 14, about 4 m at the latitude of Santiago) for the extent of the stream and projects them to its UTM zone. resample_dem() refines the DEM by bilinear interpolation, or aggregates it.

Measures

cols = c("distance_2d", "elevation_gain", "km_effort", "resolution", "fractal_dim")
summarise_stream(raw, fractal = TRUE)[, cols]     # raw device
#> # A tibble: 1 x 5
#>   distance_2d elevation_gain km_effort resolution fractal_dim
#>         <dbl>          <dbl>     <dbl>      <dbl>       <dbl>
#> 1       7847.           889.      16.7       3.13        1.07
summarise_stream(final, fractal = TRUE)[, cols]   # after the pipeline
#> # A tibble: 1 x 5
#>   distance_2d elevation_gain km_effort resolution fractal_dim
#>         <dbl>          <dbl>     <dbl>      <dbl>       <dbl>
#> 1       7281.           951.      16.8       6.16        1.08

tobler_stream(final)   # speed-slope frontier (90th percentile)
#> # A tibble: 1 x 8
#>      v1    m1 c_plus c_minus   tau     n    r1 method
#>   <dbl> <dbl>  <dbl>   <dbl> <dbl> <int> <dbl> <chr>
#> 1  3.30 0.148   3.40 -0.0248   0.9  1083 0.236 pinball

differential_stream(): per-reading distance, elevation change, slope, heading change, speed, acceleration and pace.
summarise_stream(): 2D and 3D distance, elevation gain and loss, slope, sinuosity, km-effort, idle time and fractal dimension, per stream or per group.
fractal_stream(): fractal dimension of the path with the divider (Richardson) method.
tobler_stream(), tobler_speed(): asymmetric Tobler hiking function fitted to a speed quantile (quantile regression in base R).

Two-stream operations

route = read_stream(system.file("extdata", "gpx_route.gpx", package = "metrictrails"))

# predicate: does the stream follow the route, and where?
detect_stream(raw, route)
#> # A tibble: 1 x 6
#>    pass start_row end_row direction coverage status
#>   <int>     <int>   <int> <chr>        <dbl> <chr>
#> 1     1         1    2506 forward          1 match

# transformation: where was the athlete along a known reference at each time?
ref = route %>% resample_stream(res = 2) %>% ele_correction(dem = dem)
matched = match_stream(clean, ref, params = tobler_stream(final))
summary(matched$offset_d)   # distance from each reading to its matched position
#>     Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
#>  0.05679  4.30900  7.17398  8.98717 11.64175 45.55705

project_stream(): adds UTM coordinates x, y (the projection used internally for every distance).
locate_stream(): linear referencing; position along a reference and signed cross-track distance of every reading, without constraints.
compare_stream(): Hausdorff distance, separation and Metric Score between two streams.
detect_stream(): passes of a stream along a route, with direction and coverage.
match_stream(): map matching to a reference trail that the athlete is known to have followed. The match is monotone and limited by the Tobler speed ceiling, and the global optimum is found by dynamic programming (Viterbi). It returns the matched position and the offset of every reading, split into along-track and cross-track components.
write_stream(): writes a stream to GPX.

Data

strava_streams, strava_metadata: streams and metadata of two activities from the Strava API.
inst/extdata: a GPX activity with heart rate, cadence and temperature, the same loop as a GPX route, and a small DEM of the area.

References

Sanchez, R., & Villena, M. (2020). Comparative evaluation of wearable devices for measuring elevation gain in mountain physical activities. Proc IMechE Part P: Journal of Sports Engineering and Technology, 234(4), 312-319. https://doi.org/10.1177/1754337120918975
Sanchez, R., Egli, P., Besomi, M., & Truffello, R. (2024). Assessing the impact of Digital Elevation Model resolution on elevation gain estimations in trail running. ICECET 2024. https://doi.org/10.1109/ICECET61485.2024.10698606
Sanchez, R., Egli, P. E., Jornet, K., Duggan, M., & Besomi, M. (2025). How fractal complexity distorts distance and elevation gain in trail and mountain running: The case for course measurement standardization. Proc IMechE Part P. https://doi.org/10.1177/17543371251341660
Sanchez, R., Nieto-Jimenez, C., & Riveros-Matthey, C. (2025). High-precision mapping of mountain terrain for human locomotion research: A multimodal geospatial framework. ICPRS 2025. https://doi.org/10.1109/ICPRS66293.2025.11302827
Sanchez, R. (2025). Human trajectory mapping in ecological contexts: a framework for reliable space-time localization. ANZSCPB Conference 2025.
Martinez, C., Sanchez, R., & Diaz, C. (2026). A post-processing methodology for improving kinematic consistency in GNSS-based running trajectories. ICECET 2026. https://doi.org/10.1109/ICECET65726.2026.11632531
